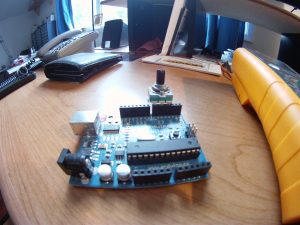

When I’m developing Arduino code, I often have variables that need to be tweaked during testing & calibration.
Rather than recompile and upload the code (a time consumin process) I wrote a few lines to let me open the Serial Monitor and send commands directly.

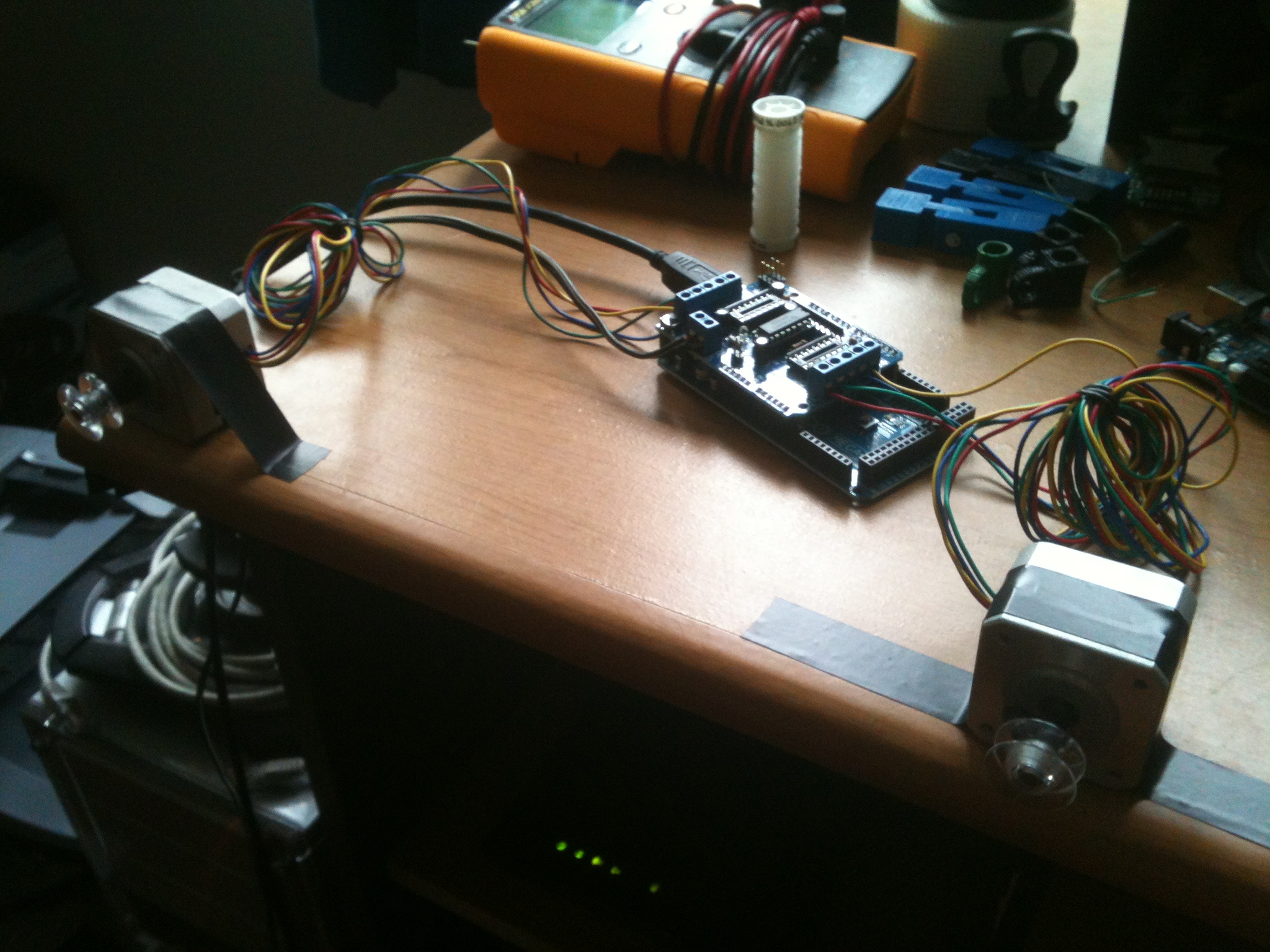

I hope you find this useful – I use it in all my robots!

//------------------------------------------------------------------------------
// Serial Monitor control example
// dan@marginallyclever.com 2011-10-17
//------------------------------------------------------------------------------

//------------------------------------------------------------------------------
// constants
//------------------------------------------------------------------------------
#define DELAY   (5)
#define BAUD    (57600)
#define MAX_BUF (64)

//------------------------------------------------------------------------------
// global variables
//------------------------------------------------------------------------------
char buffer[MAX_BUF];
int sofar;

char test_on=0;  // only used in processCommand as an example.
float pos_x;
float pos_y;
float pos_z;

//------------------------------------------------------------------------------
// methods
//------------------------------------------------------------------------------

//------------------------------------------------------------------------------
void jog(float x, float y, float z) {
  // do some tests here to validate x, y, and z.
  pos_x=x;
  pos_y=y;
  pos_z=z;
}

//------------------------------------------------------------------------------
void processCommand() {
  if(!strncmp(buffer,"help",4)) {
    Serial.println("commands: where; test (1/0); jog [x(float)] [y(float)] [z(float)];");
  } else if(!strncmp(buffer,"where",5)) {
    // no parameters
    Serial.print(pos_x);
    Serial.print(", ");
    Serial.print(pos_y);
    Serial.print(", ");
    Serial.println(pos_z);
  } else if(!strncmp(buffer,"test",4)) {
    // one whole number parameter
    char *state=strchr(buffer,' ')+1;
    Serial.println(state);
    if(state[0]=='0') {
      Serial.println("End test");
      test_on=0;
    } else {
      Serial.println("Start test");
      test_on=1;
    }
  } else if(!strncmp(buffer,"jog",3)) {
    // several optional float parameters.
    // then calls a method to do something with those parameters.
    float xx=pos_x;
    float yy=pos_y;
    float zz=pos_z;

    char *ptr=buffer;
    while(ptr && ptr<buffer+sofar) {
      ptr=strchr(ptr,' ')+1;
      switch(*ptr) {
      case 'x': case 'X': xx=atof(ptr+1);  Serial.print('x'); Serial.println(xx); break;
      case 'y': case 'Y': yy=atof(ptr+1);  Serial.print('y'); Serial.println(yy); break;
      case 'z': case 'Z': zz=atof(ptr+1);  Serial.print('z'); Serial.println(zz); break;
      default: ptr=0; break;
      }
    }

    jog(xx,yy,zz);
  }
}

//------------------------------------------------------------------------------
void setup() {
  Serial.begin(BAUD);
  Serial.println("Init...");
  Serial.println("Stretching...");

  sofar=0;
  Serial.println("** AWAKE **");
}

//------------------------------------------------------------------------------
void loop() {
  // listen for serial commands
  while(Serial.available() > 0) {
    buffer[sofar++]=Serial.read();
    if(buffer[sofar-1]==';') break;  // in case there are multiple instructions
  }

  // if we hit a semi-colon, assume end of instruction.
  if(sofar>0 && buffer[sofar-1]==';') {
    // what if message fails/garbled?

    // echo confirmation
    buffer[sofar]=0;
    Serial.println(buffer);

    // do something with the command
    processCommand();

    // reset the buffer
    sofar=0;

    // echo completion
    Serial.println("Done.");
  }
}
