New Higher Level Logic

New Higher Level Logic

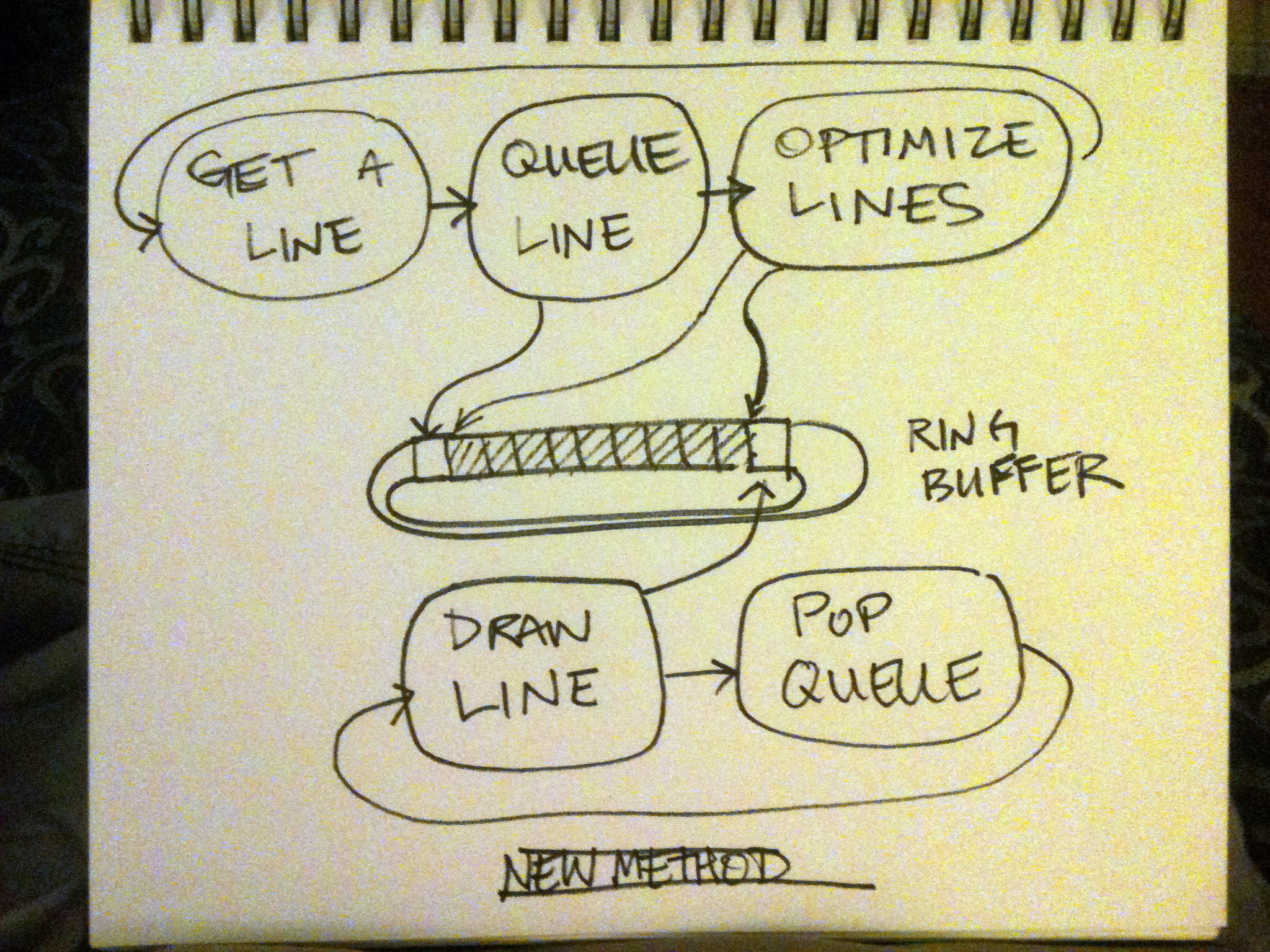

The new system, based on GRBL, uses the timer interrupt to simulate a second thread. In thread one, lines are taken out of the list and drawn as fast as the motors can move. The start and end speeds of each line might not be zero. In thread two, lines are put into the buffer and then optimized so the machine only slows down when it needs to.
